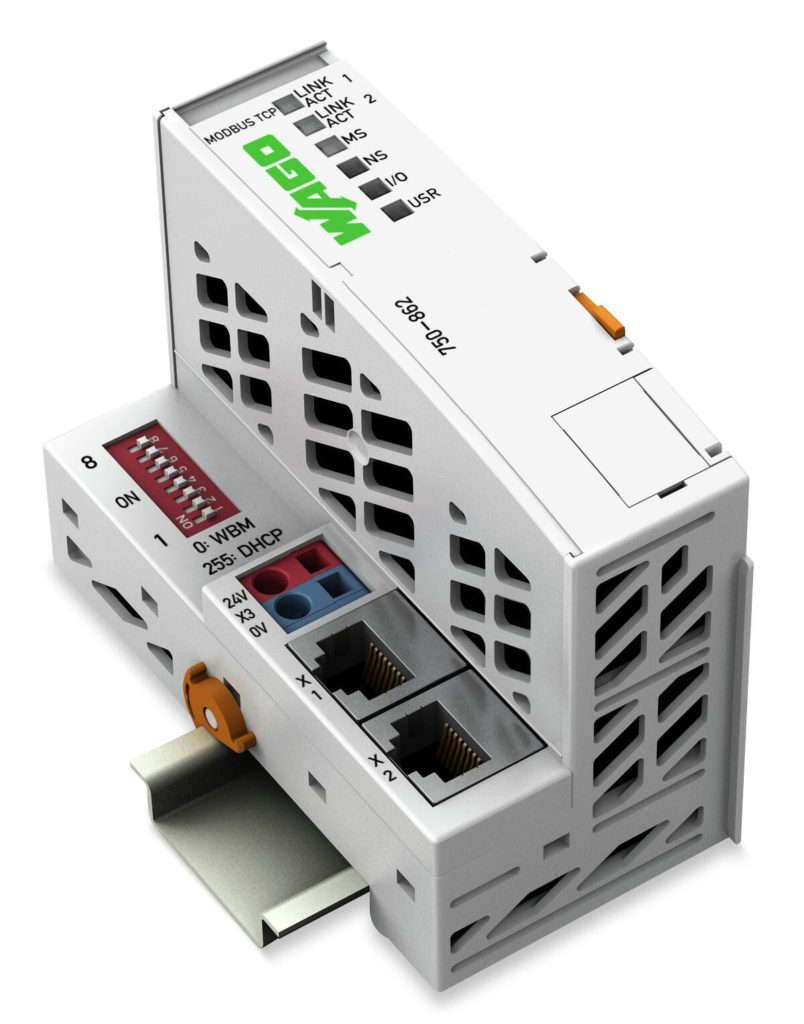

KNX WI/O kontroller Ethernet

Produkt nr: 750-862

Lagervare

FDV produkt

Teknisk data

Communication Modbus TCP
Ethernet protocol HTTP(S)
BootP
DHCP
DNS
SNTP
(S)FTP
SNMP
Visualization Web server
CPU 32 bits
Programming languages per IEC 61131-3 Instruction List (IL)
Ladder Diagram (LD)
Function Block Diagram (FBD), Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)
Programming environment WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Configuration options WAGO-I/O-CHECK
Web-based management
CODESYS Library
Baud rate (communication/fieldbus 1) 10/100 Mbit/s
Baud rate 10/100 Mbit/s
Transmission medium (communication/fieldbus) Twisted Pair S-UTP; 100 Ω; Cat. 5; Line length (max.): 100 m
Transmission performance Class D acc. to EN 50173
Program memory 2 MB
Data memory 2 MB
Software non-volatile memory 16 Kbytes
Number of modules per node max. 250
Number of I/O modules without bus extension max. 64
Input and output process image (Fieldbus) max. 1020 Worte/1020 Worte
Indicators LED (LINK/ACT) green: Network connection Port 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Internal data bus status, status programmable by user
System supply voltage 24 VDC (-25 … +30 %); via wiring level
Input current typ. at rated load (24 V) 300 mA
Efficiency of the power supply (typ.) at nominal load (24 V) 90 %
Current consumption, system supply (5 V) 390 mA
Total current for system supply 700 mA
Isolation 500 V system/field

Connection data

Connection technology: communication/fieldbus Modbus TCP/UDP: 2 x RJ-45
Connection technology: system supply 2 x CAGE CLAMP®
Connection type (1) System supply
Solid conductor 0,08 … 2,5 mm² / 28 … 14 AWG
Fine-stranded conductor 0,08 … 2,5 mm² / 28 … 14 AWG
Strip length 8 … 9 mm / 0.31 … 0.35 inch
Connection technology: Device configuration 1 x 4-pole male connector

Geometrical Data

Width 49,5 mm / 1.949 inch
Height 96,8 mm / 3.811 inch
Depth 71,9 mm / 2.831 inch
Length from upper-edge of DIN-35 rail 64,7 mm / 2.547 inch

Mechanical data

Weight 105,3 g
Color lysegrå
Housing material Polycarbonate; Polyamide 6.6
Conformity marking CE

Environmental Requirements

Surrounding air (operating) temperature 0 … 55 °C
Surrounding air (storage) temperature -40 … 85 °C
Degree of protection IP20
Degree of pollution (5) 2 per IEC 61131-2
Operating altitude without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); max.: 5000 m
Relative air humidity (no condensation) 95 %
Mounting position any
Type of mounting DIN-35 rail
Vibration resistance 4g per IEC 60068-2-6
Shock resistance 15g per IEC 60068-2-27
EMC immunity to interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-3, marine applications
Exposure to pollutants Per IEC 60068-2-42 and IEC 60068-2-43
Fire load 1,111 MJ
Permissible H2S contaminant concentration at a relative humidity 75 % 10 ppm
Permissible SO2 contaminant concentration at a relative humidity 75 % 25 ppm

Commercial data

Packaging type BOX
Country of origin DE
GTIN 4055143821308
Customs tariff number 85371091990
