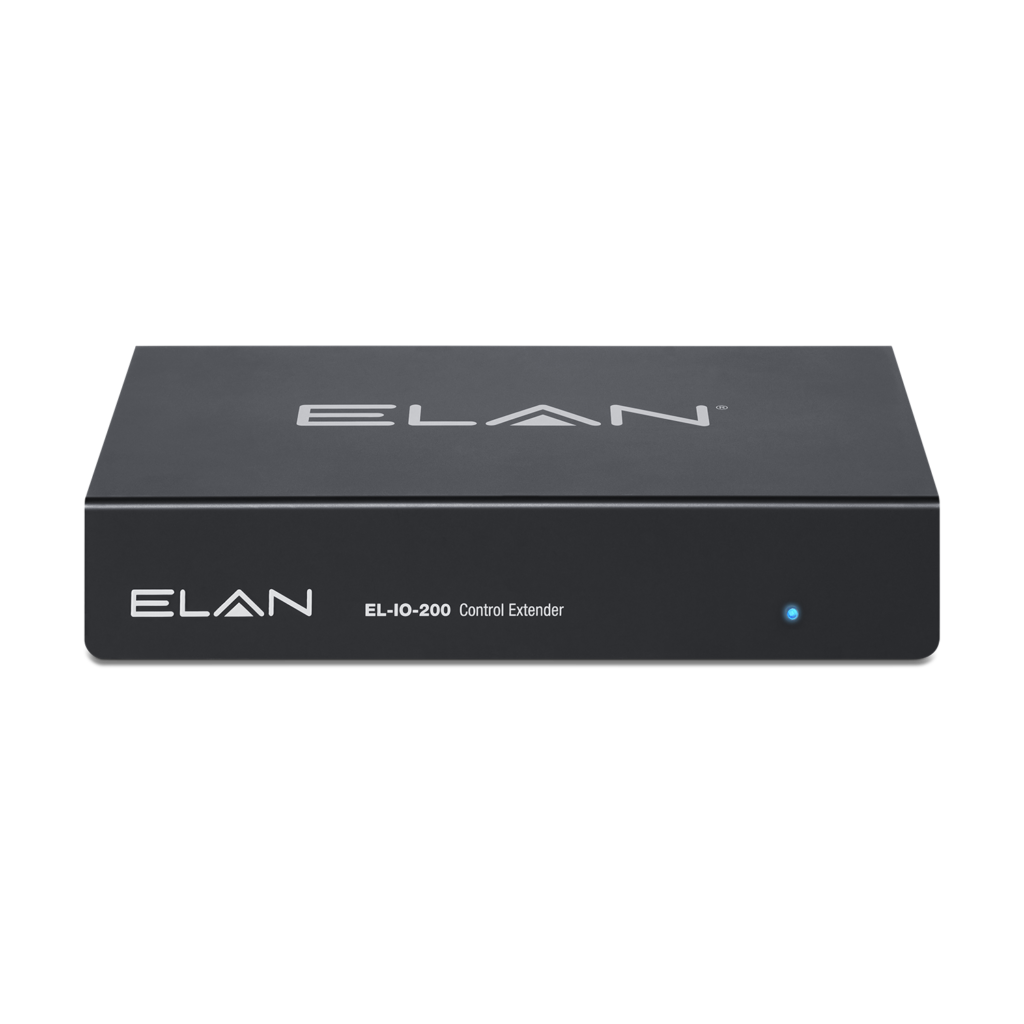

EL SC-IO-200, utvidelse inn/utg, 2-RS232, 4-IR

Produkt nr: EL-IO-200


Listepris kr 3 680,-

  • Utvidelsesmodul for Elan systemkontroller
  • Systemkontroller finner du her: EL-SC-100/300

Lagervare

+
Logg inn

Lagervare

Levering: 1-3 virkedager

Pris er eks. mva.

Teknisk data

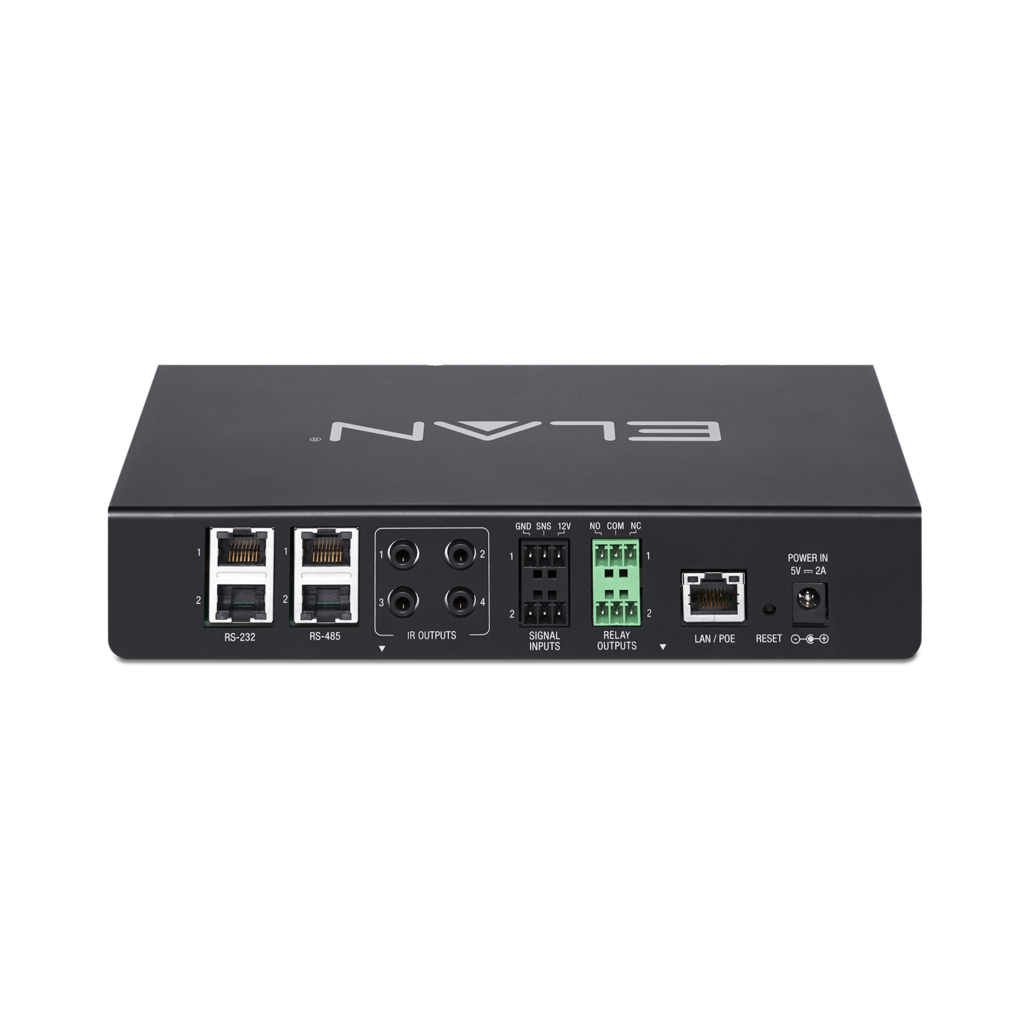

TILKOBLINGER
RS-232 (2) RJ-45 ports. Null modem configurable
RS-485 (2) RJ-45 ports
IR Output (4) 3.5mm ports. (Mono), - 12V DC
Signal Input (2) Terminal Block Connectors 3-pin
Relay (2) Terminal Block Connectors 3-pin
Ethernet (1) RJ-45 port PoE IEEE 802.3af (802.3at Type 1)
Power (1) 120/240VAC 5V 2A Output
PoE IEEE 802.3af (802.3at Type 1)
Wi-Fi 2.4 / 5 GHz 802.11 b/g/n/ac
SYSTEM
Software compatibility Refer to the integration note for compatibility
Managed by Core Module Software
GENERELT
Operating Temperature: 0° to 40° C
Operating Humidity 90% Maximum (Non-Condensing)
Mounting Free standing, Wall mount, structured wiring cabinet
Product Dimensions (in.) 8.46in W x 1.63in H x 5in D
215mm W x 41.5mm H x 127mm D)
Weight 1.8 lbs, 11oz / 3.95kg
