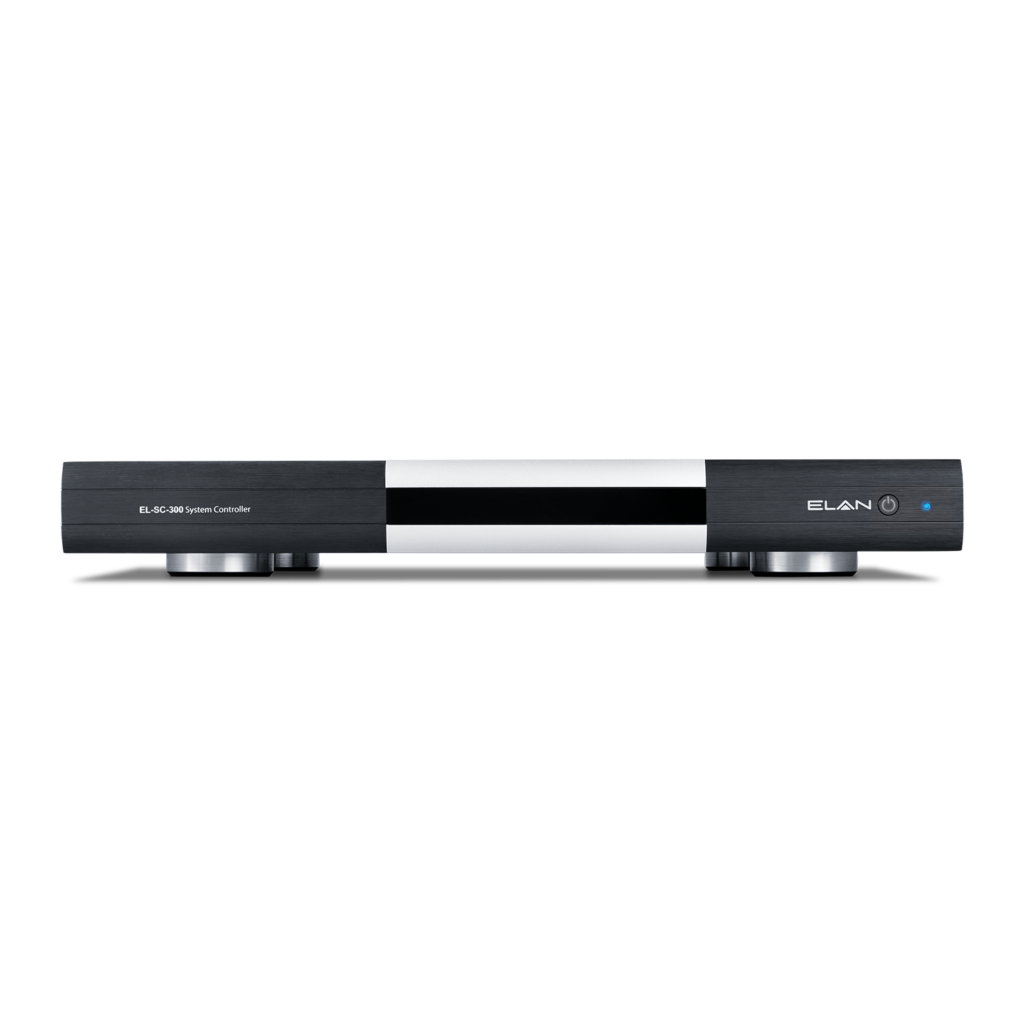

EL SC-300 System Controller, Z-Wave, 8-RS232, 12-IR

Produkt nr: EL-SC-300-ZW


Listepris kr 27 314,-

Fleksibel, kraftig, effektiv og pålitelig, ELAN systemkontroller er hjernen bak systemet ditt, og gir fleksibiliteten til å møte behovene til store og små prosjekter uten kompromisser. Med KNX grensesnitt har man den ultimate kontroll på sin SmartHus løsning. Kombiner med styring av lyd, bilde og andre smarte løsninger i ett samme bruker grensesnitt

  • Integrert IP-, RS232 seriell- og infrarød kontroll i samme enhet - Kontroller alle enhetene dine, uansett format.
  • For Rack montering.

Lagervare

+
Logg inn

Lagervare

Levering: 1-3 virkedager

Pris er eks. mva.

Teknisk data

SYSTEM GENERELT

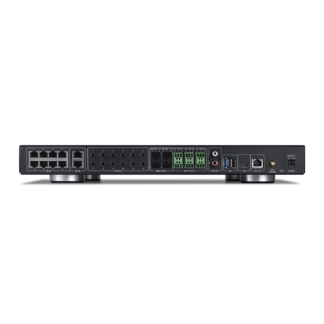

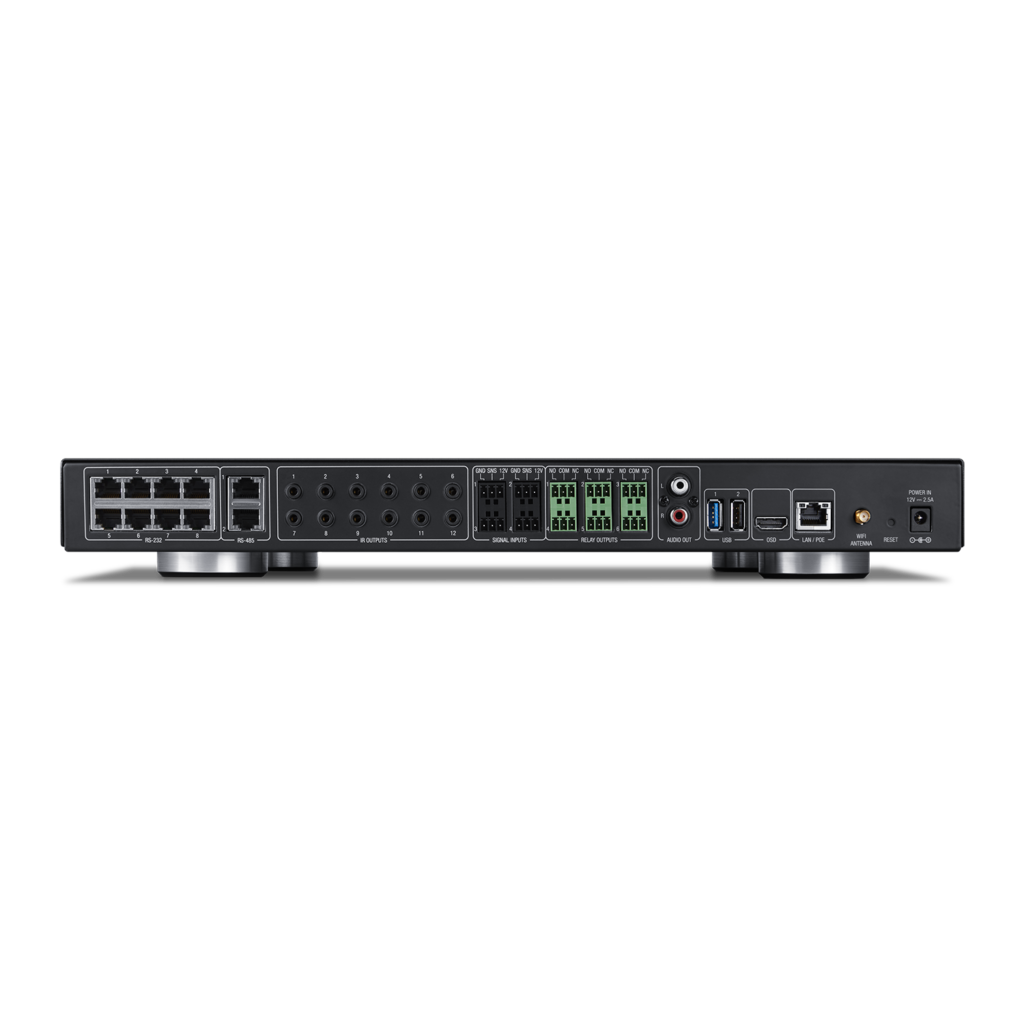

TILKOBLINGER
RS-232 (8) RJ-45 ports. Null modem configurable
RS-485 (2) RJ-45 ports
IR Output (12) 3.5mm ports. (Mono), - 12V DC
Signal Input (4) Terminal Block Connectors 3-pin
Relay (6) Terminal Block Connectors 3-pin
HDMI (1) For on-screen display 1.4b
USB (1) 3.0 USB / (1) 2.0 USB
RCA Audio (2) Stereo audio out
Ethernet (1) RJ-45 port
Wi-Fi 2.4 / 5 GHz 802.11 b/g/n/ac
Software Compatibility Requires Core Module 8.6 or above
Updates Managed by Core Module Software
Power 120/240VAC Input 12VDC 1A output
PoE IEEE 802.3af (802.3at Type 1)
Driftstemperatur 0° to 40° C
Operating Humidity 90% Maximum (Non-Condensing)
Mounting Free standing, Rack mount
Product Dimensions
With feet:
17” W x 2.25” H x 14” D (431.8mm W x 57.2mm H x
355.6mm D)
Without feet, with rack mount brackets:
19” W x 1.75” H x 14” D (482.6mm W x 44.45mm H x
355.6mm D)
Weight 8 lbs, 11oz / 3.95kg
